dn200 pn10 Clamp EPDM Treatment billed type Flange Sewage outlet Duck Check Valve
Benefits
1. Cost-effective: Duckbill valves are usually less costly, especially when suitable rubber raw materials are used, and their service life can exceed that of metal check valves.
2. Easy installation: The installation method of the duckbill valve is flexible and diverse, can be repaired, and is suitable for different installation environments.
3. Light weight and small size: The duckbill valve is easy to transport and handle.
4. Automatic operation: The duckbill valve can be automatically opened and closed according to the water pressure difference, without external power supply or manual operation, and the maintenance cost is low.
5. Corrosion resistance: The duckbill valve with full rubber structure will not rust and is suitable for a variety of corrosive media.
Features
1. 100% full rubber structure, which can meet various anti-corrosion requirements (according to actual needs, different rubber materials can be selected.)
2. No clogging and good sealing.
3. Long service life, no failure, maintenance-free.
4. There are no moving parts and mechanical parts, no electrical signal and manual operation, and no noise.
5. The opening pressure is small, and the water head greater than 0.01 meters can be opened.
6. Under normal conditions, the head loss can be reduced to a very small extent.
7. It can change various installation forms to meet customer needs.
8. Easy installation, low cost and low operating cost.
Main connection size
| Model | Pipe Nominal Diameter | Length(mm) | High(mm) | Flange outside diameter |
| XH8150-125-X | 50 | 125 | 47 | 150 |
| XH8180-175-X | 80 | 175 | 72 | 200 |
| XH81100-225-X | 100 | 225 | 97 | 225 |
| XH81150-350-X | 150 | 350 | 147 | 275 |
| XH81200-375-X | 200 | 375 | 197 | 338 |
| XH81250-475-X | 250 | 475 | 247 | 400 |
| XH81300-560-X | 300 | 560 | 297 | 485 |
| XH81350-625-X | 350 | 625 | 344 | 525 |
| XH81400-700-X | 400 | 700 | 394 | 588 |
| XH81450-780-X | 450 | 780 | 444 | 625 |
| XH81500-880-X | 500 | 880 | 494 | 688 |
| XH81600-1000-X | 600 | 1000 | 494 | 800 |
| XH81700-1000-X | 700 | 1000 | 694 | 969 |
| XH81800-1260-X | 800 | 1260 | 794 | 1080 |
| XH81900-1400-X | 900 | 1400 | 894 | 1150 |
| XH811000-1520-X | 1000 | 1520 | 988 | 1250 |
| XH811200-1725-X | 1200 | 1725 | 1188 | 1485 |

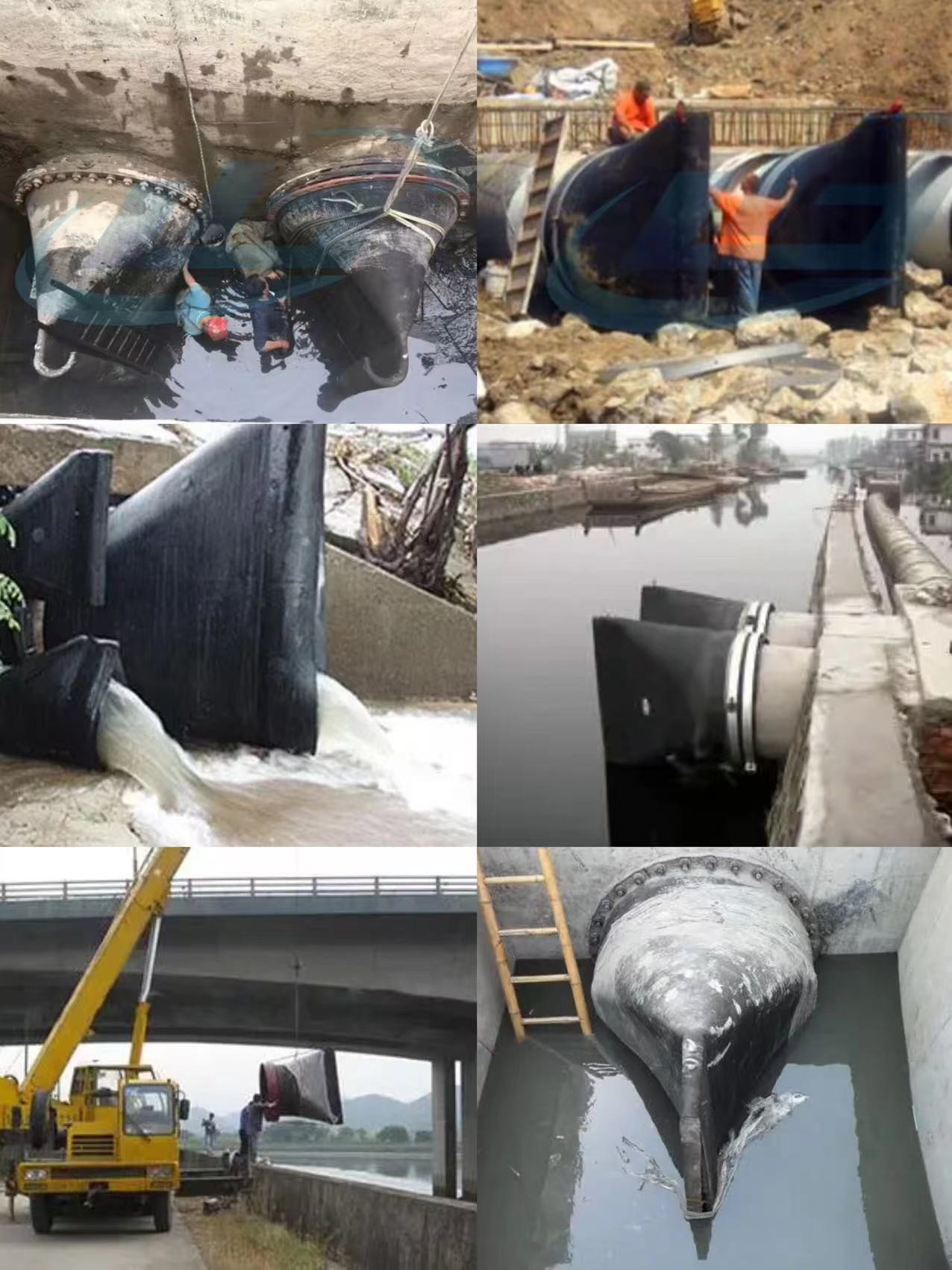

Product Applications
FAQ
Q: Do you have OEM service ?
A: Yes, a variety of products size, quality and quantity can be customized according to your needs.
Q: Can I visit your factory before the order?
A: Yes, welcome to our factory to check the quality.
Q: Could you offer a free sample ?
A: Yes, samples can be provided for free.
Q: Can you provide drawings and technical information?
A: Yes, our professional technical department will design and provide drawings and technical data.
Q: Where is your loading port?
A: Shanghai, Qingdao or Tianjin in China.
