DN50 PN16 flange connector connection pipe eccentricity reducer rubber expansion joint
Product Introduction
Eccentric reducer rubber joint is a flexible connector used to connect pipes of different diameters, the main feature is that it can solve the problem of uncentered and different diameters when connecting metal pipes, and at the same time has the effect of shock absorption and noise reduction, which can save pipeline installation parts and costs.
Product Advantages
1. Shock absorption and noise reduction: The rubber material has good elasticity, which can absorb and reduce the vibration and noise transmitted by the pipeline, and provide a quieter and more comfortable working environment.
2. Cost saving: Due to its unique structural design, eccentric reducer rubber joints can reduce the number of pipe installation parts, thereby saving costs.
3. High pressure resistance and large displacement: This joint has high pressure resistance and large displacement, which is able to balance pipeline deviation and absorb vibration.
4. Easy installation: Eccentric reducer rubber joints are light in size, easy to install and maintain, and suitable for various complex construction environments.
5. Wide range of applications: It can be widely used in water supply and drainage, circulating water, HVAC, fire protection, papermaking, pharmaceutical, petrochemical, shipbuilding, water pumps, compressors, fans and other pipeline systems.
6. Smooth inner wall to prevent corrosion: Its inner wall is seamless and smooth, which effectively prevents the corrosion of the corrosive medium on the inner wall of the rubber joint and prolongs the service life.
7. Strong adaptability: Able to cope with the needs of different diameter pipe connections, more flexible and adaptable in construction.
8. A variety of material options: According to the different working conditions, it can be made into acid-resistant, alkali-resistant, corrosion-resistant, oil-resistant, heat-resistant and other varieties to adapt to different working environments.
Product parameters
| Nominal diameter | Length
(mm) | Technical parameters | Technical parameters |
| DN*DN | D | D0 | n-φ | D | D0 | n1-φ1 |
| 50×40 | 180 | 165 | 125 | 4-φ18 | 150 | 110 | 4-φ18 |
| 65×40 | 180 | 185 | 145 | 4-φ18 | 150 | 110 | 4-φ18 |
| 65×50 | 180 | 185 | 145 | 4-φ18 | 165 | 125 | 4-φ18 |
| 80×50 | 180 | 200 | 160 | 8-φ18 | 165 | 125 | 4-φ18 |
| 80×65 | 180 | 200 | 160 | 8-φ18 | 185 | 145 | 4-φ18 |
| 100×50 | 180 | 220 | 180 | 8-φ18 | 165 | 125 | 4-φ18 |
| 100×65 | 180 | 220 | 180 | 8-φ18 | 185 | 145 | 4-φ18 |
| 100×80 | 180 | 220 | 180 | 8-φ18 | 200 | 160 | 8-φ18 |
| 125×65 | 180 | 250 | 210 | 8-φ18 | 185 | 145 | 4-φ18 |
| 125×80 | 180 | 250 | 210 | 8-φ18 | 200 | 160 | 8-φ18 |
| 125×100 | 180 | 250 | 210 | 8-φ18 | 220 | 180 | 8-φ18 |
| 150×80 | 200 | 265 | 240 | 8-φ22 | 200 | 160 | 8-φ18 |
| 150×125 | 200 | 285 | 240 | 8-φ22 | 250 | 210 | 8-φ18 |
| 200×100 | 220 | 340 | 295 | 8-φ22 | 220 | 180 | 8-φ18 |
| 200×150 | 220 | 340 | 295 | 8-φ22 | 285 | 240 | 8-φ22 |
| 250×125 | 220 | 395 | 350 | 12-φ22 | 250 | 210 | 8-φ18 |
| 250×150 | 220 | 395 | 350 | 12-φ22 | 285 | 240 | 8-φ22 |
| 250×200 | 220 | 395 | 350 | 12-φ22 | 340 | 295 | 8-φ22 |
| 300×125 | 220 | 445 | 400 | 12-φ22 | 285 | 240 | 8-φ22 |
| 300×200 | 220 | 445 | 400 | 12-φ22 | 340 | 295 | 8-φ22 |

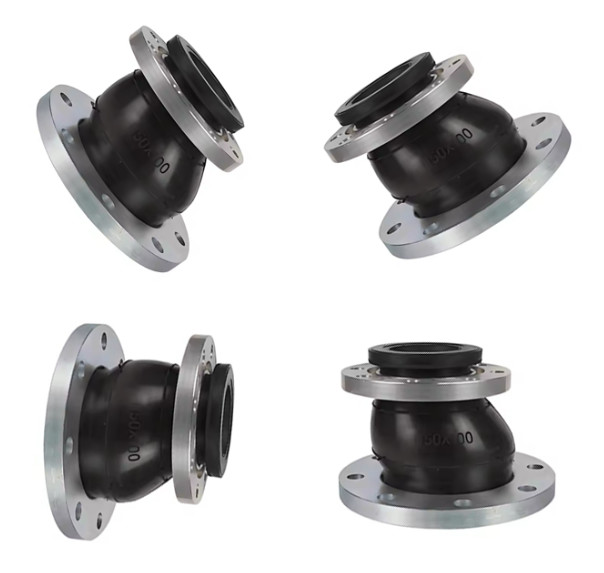

Product display from different angles
Different types of rubber joints
Pre-sale service
1. 24-hour timely reply to customers' questions
2. Support factory tours, and then close the deal
3. Develop a plan according to customer needs
4. 100% quality inspection before shipment.
After-sales service
1. Support installation instructions
2. Support the design of customer brochures
3. Repurchase order discounts

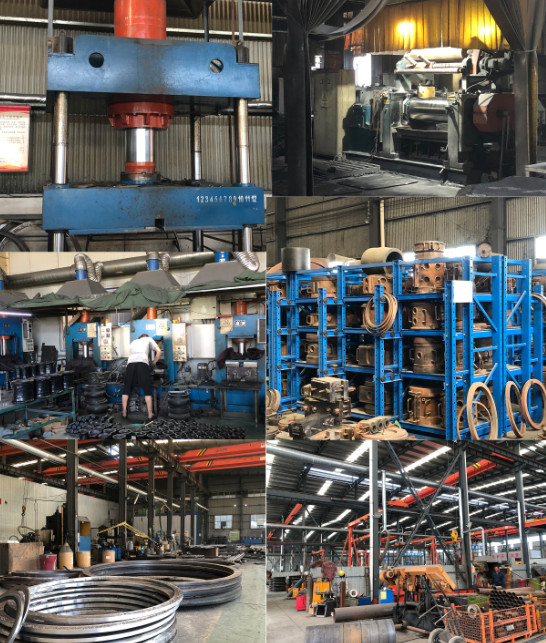

Workshop display
Why choose us?
1. We have more than 20 years of export experience
2. The quality of our products is strictly controlled
3. Our price is competitive
4. We support customized service
5. We have a one-year warranty
6. Our delivery time is short
